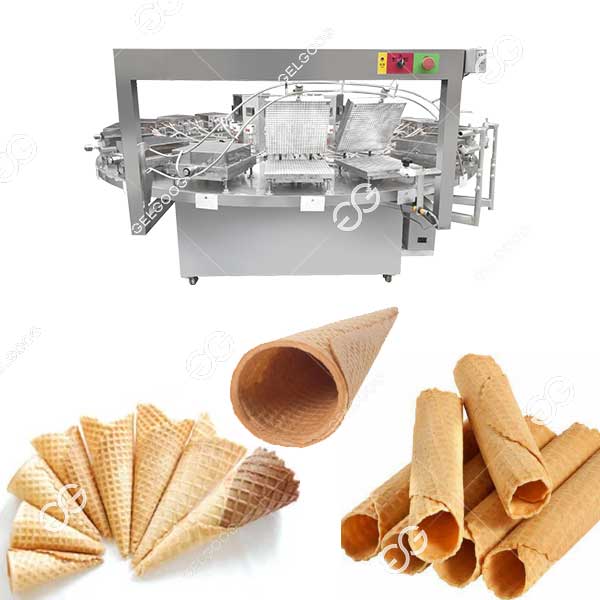

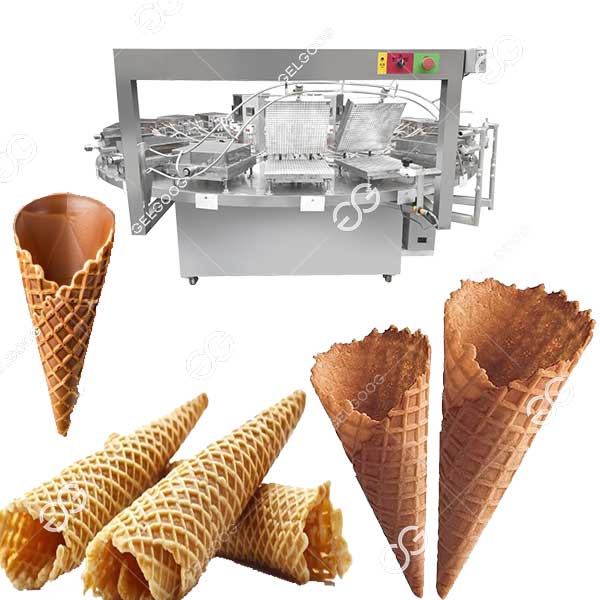

The automatic rolled sugar cone machine is designed for continuous production of crispy ice cream sugar cones. It integrates batter dispensing, baking, rolling, forming, cooling and product collection into one automated system.
With production capacities from 300 to 1,200 pcs/h, the machine is suitable for ice cream cone manufacturers, bakeries, dessert producers and food processing businesses. Cone size, thickness, pattern and shape can be customized according to production requirements.
What Is a Rolled Sugar Cone Machine?
A rolled sugar cone machine is an automatic food processing machine used to bake thin sugar cone sheets and form them into crispy ice cream cones.
The machine combines batter feeding, wafer baking, cone rolling and forming in a continuous production process. Depending on the model, it can produce approximately 300–1,200 sugar cones per hour.
It is suitable for manufacturers producing ice cream cones for ice cream shops, dessert businesses, bakeries, food factories and commercial distribution.
Unlike manual cone production, an automatic machine provides more consistent cone dimensions, baking conditions and product output.
How Does the Automatic Rolled Sugar Cone Machine Work?
The rolled sugar cone machine completes the main production steps automatically:
1. Batter Preparation
Sugar, flour, eggs, oil and other ingredients are mixed into a uniform batter according to the required recipe.
2. Automatic Batter Feeding
The prepared batter is transferred to the hopper. A controlled feeding system dispenses a consistent amount of batter onto the heated baking plates.
3. Baking
The batter is baked into thin, crispy wafer sheets under controlled heating conditions. Stable baking helps maintain consistent color, thickness and texture.
4. Cone Rolling
After baking, the hot wafer sheet is transferred to the forming section and rolled into the required sugar cone shape.
5. Cone Forming
The cone is shaped and held until it reaches the required geometry. The forming parameters can be adjusted according to the cone specification.
6. Cooling and Collection
The formed cones are cooled and collected for counting, inspection and subsequent packaging or use in ice cream production.
Production Flow:
Batter Preparation → Batter Feeding → Baking → Rolling → Forming → Cooling → Collection
Key Attributes of the Rolled Sugar Cone Machine
1. High Production Efficiency:
The machine is designed to be compact yet highly efficient, enabling the rapid production of a significant quantity of rolled sugar cones. For instance, certain models are capable of producing between 300 and 1200 sugar cones per hour.
2. Customizability:
Sugar cones can be tailored to meet specific customer requirements in terms of size, thickness, pattern, and shape, catering to diverse market demands.
3. Robust Construction:
Constructed from high-quality materials, such as durable cast iron baking pans and stainless steel frames, the machine is built for long-term and stable performance.
4. User-Friendly Operation:
Equipped with a PLC display, the machine allows operators to easily adjust parameters like temperature and time, making it accessible to users with varying levels of experience.
5. Energy Efficiency:
Some machines feature a dual-circuit heating system, which reduces energy consumption while maintaining baking quality.
Applications of the Rolled Sugar Cone Machine
- Ice cream cone manufacturers
- Ice cream production plants
- Bakeries
- Dessert manufacturers
- Food processing companies
- Commercial ice cream businesses
- Private-label ice cream producers
For large-scale ice cream manufacturers requiring higher output, a complete automatic sugar cone production line can integrate batter preparation, baking, forming, cooling, counting and packaging.
Frequently Asked Questions
What is a rolled sugar cone machine?
A rolled sugar cone machine is an automatic machine that bakes thin sugar cone sheets and rolls them into crispy ice cream cones.
How many sugar cones can the machine produce per hour?
Depending on the model, the machine can produce approximately 300–1,200 pcs/h. Higher-capacity automatic sugar cone production lines are also available for industrial production.
Can the sugar cone size be customized?
Yes. Cone size, thickness, shape and pattern can be customized according to the required finished product.
What materials are used to make sugar cones?
Typical sugar cone batter contains ingredients such as flour, sugar, eggs and oil. The exact formulation depends on the manufacturer's recipe.
Can the machine produce different cone patterns?
Yes. Customized baking plates and forming configurations can be used for different cone patterns and specifications.
What information is needed to choose a sugar cone machine?
The main information includes required capacity, cone size, cone thickness, heating method, factory power supply and finished product requirements.
